Configure EC2 bastion host

In this step, we will create Access key for the user that configure your cluster.

Create Access key

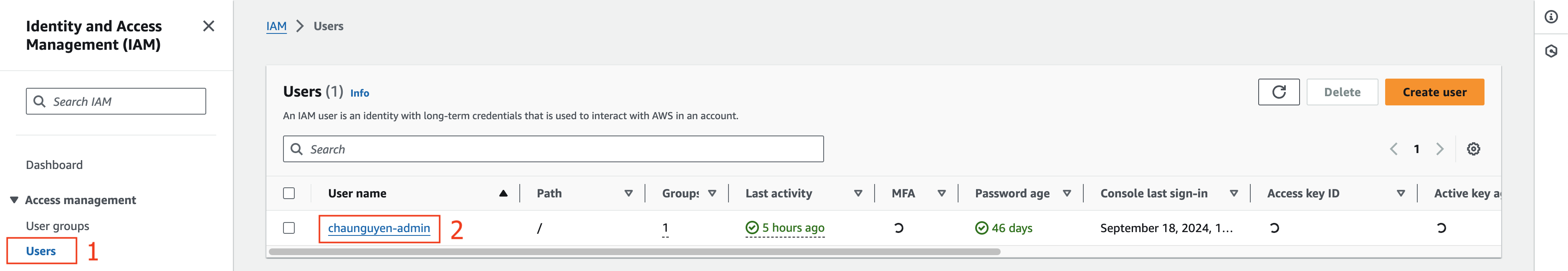

1. Go to IAM management console

• Click Users.
• Choose User that you use to configure the cluster.

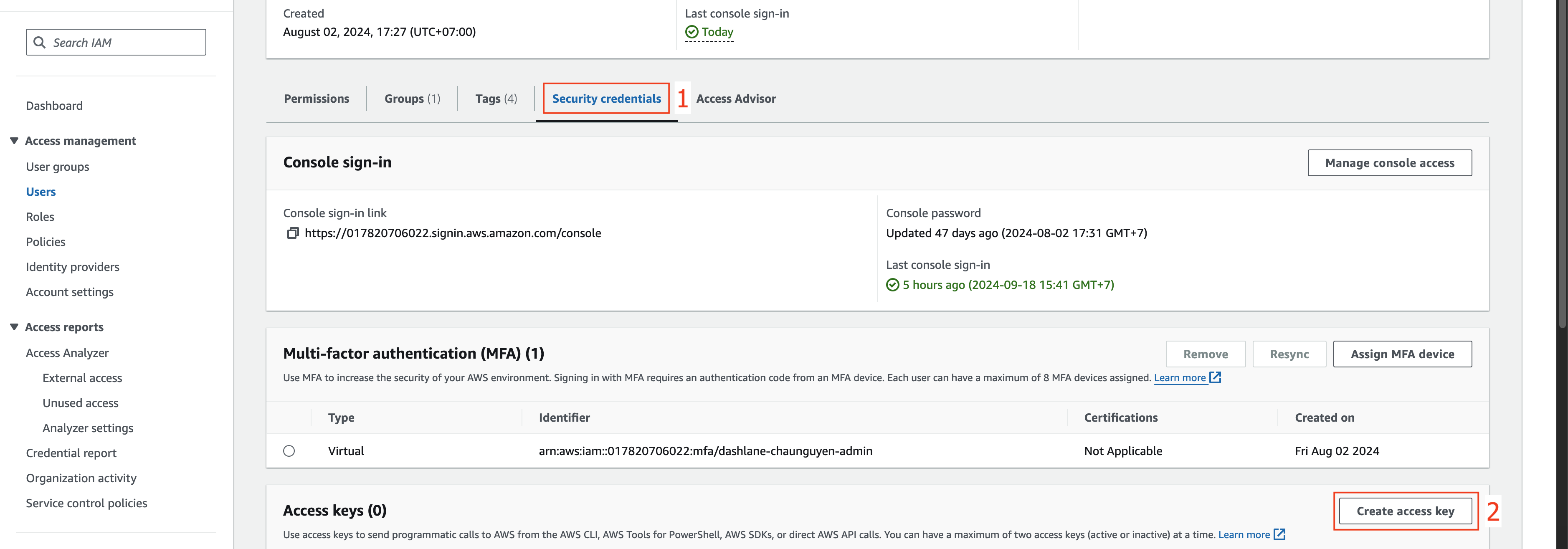

2. At User page.

• Click Security credentials tab.
• Click Create access key.

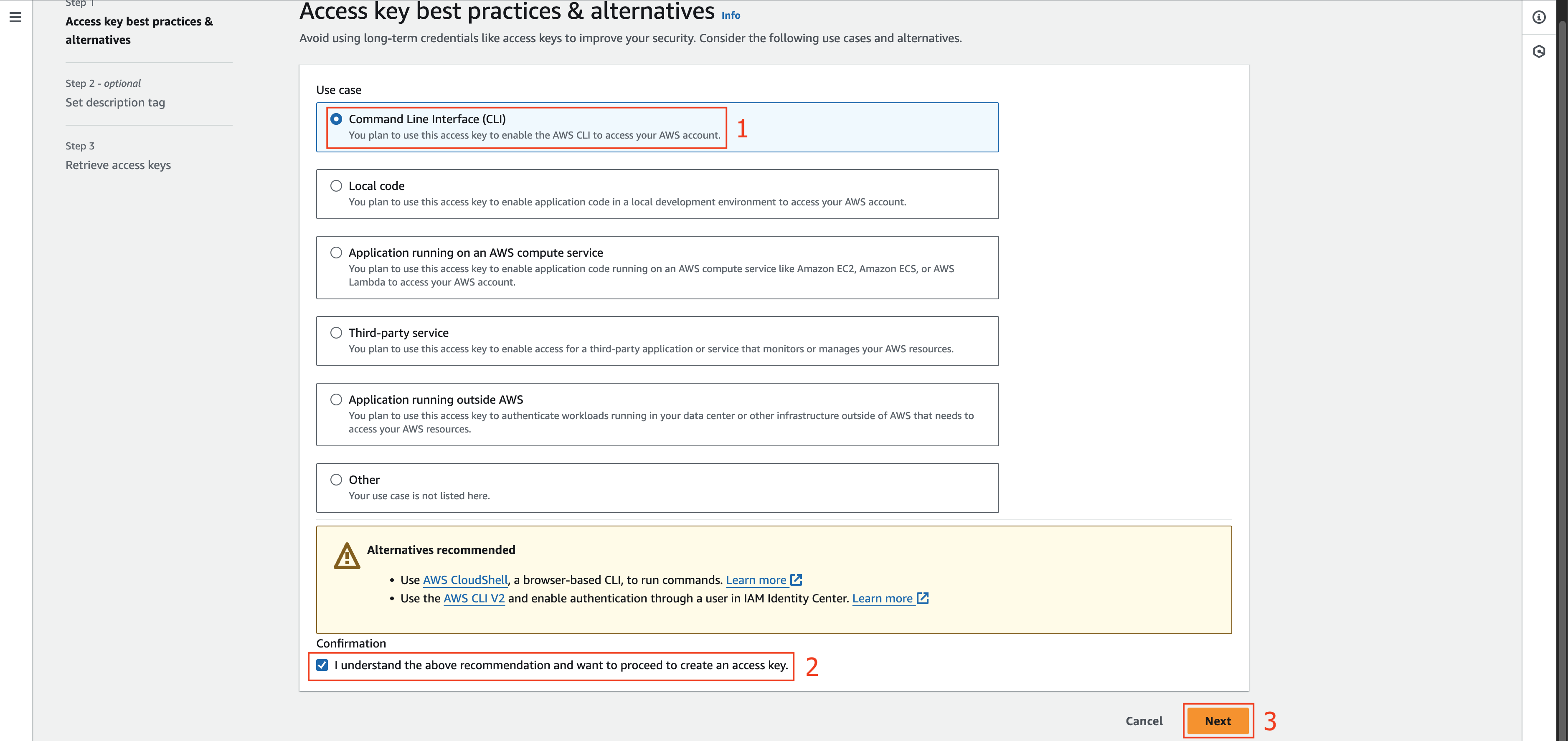

3. At step 1: Access key best practices & alternatives page.

• Choose Command Line Interface (CLI).
• Click on Confirmation.
• Click Next.

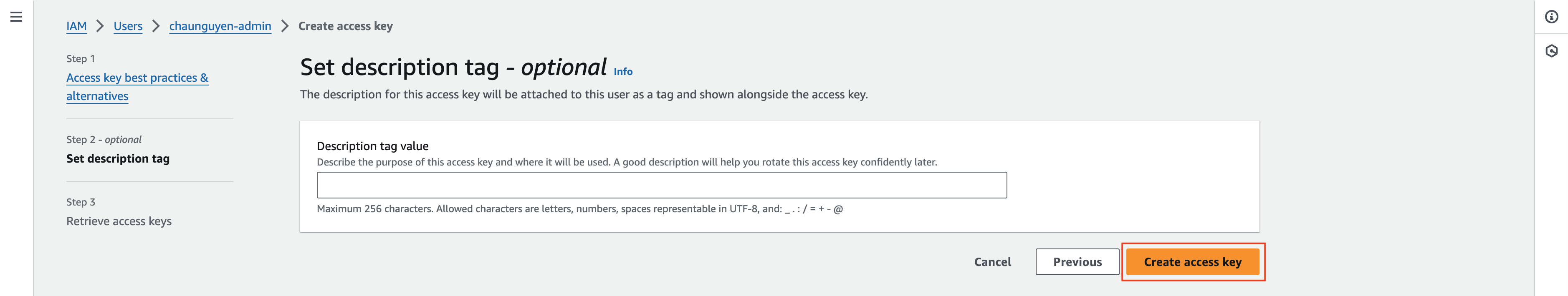

4. At step 2: Set description tag page.

• Leave as default and click Create access key.

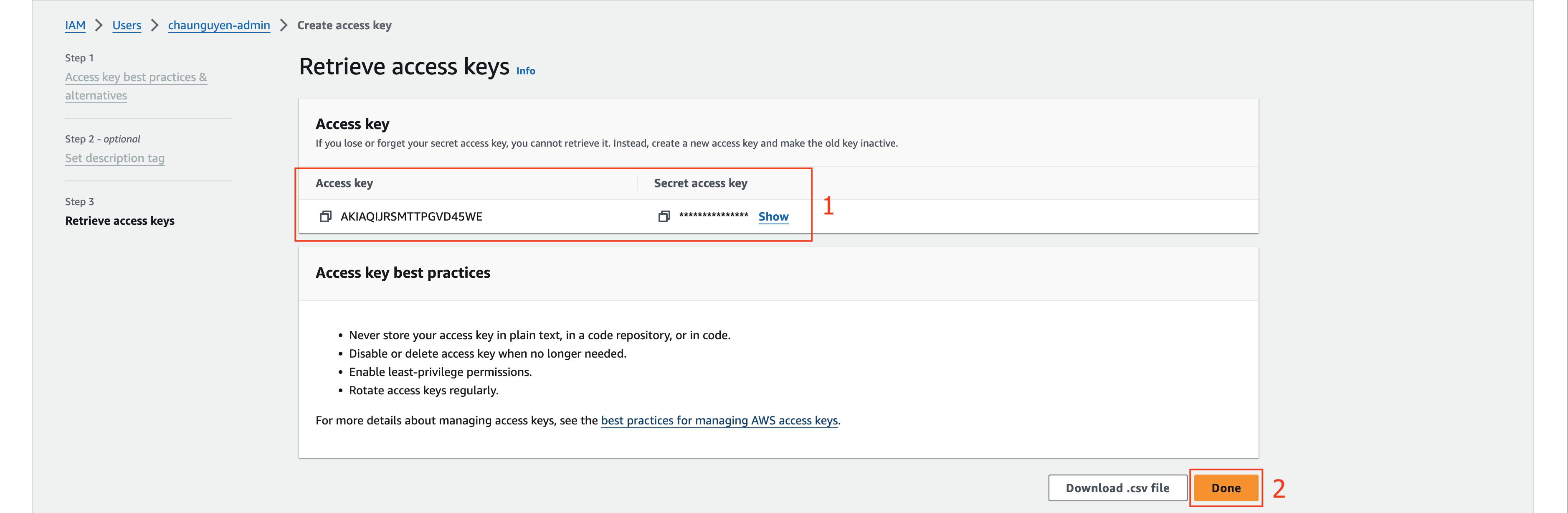

5. At step 3: Retrieve access keys page.

• Save Access key and Secret access key.
• Click Done

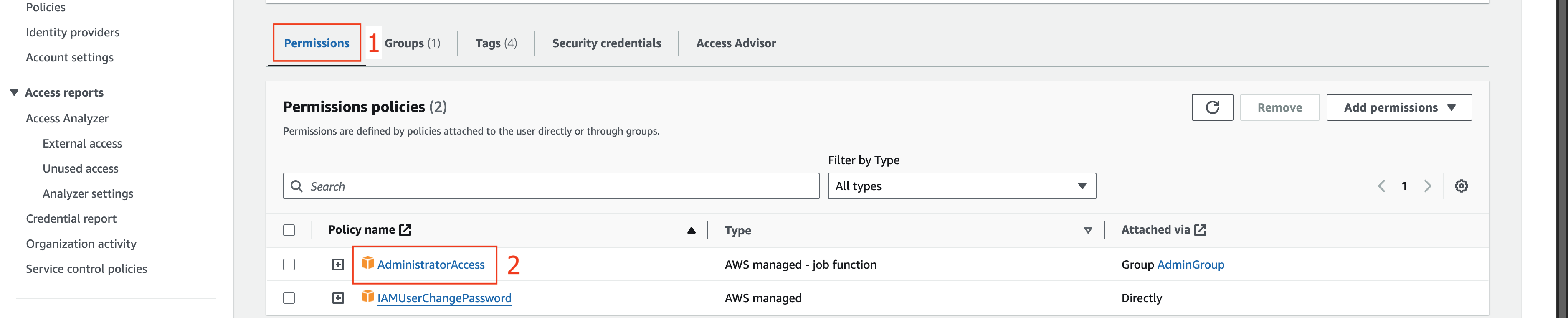

6. At User page.

• Click Permissions tab.
• Make sure this user have AdministratorAccess permission.

  AdministratorAccess permission is only used in this LAB environment. If you setup for your production environment, make sure your user have at least privileges.



Configure credential for EC2 bastion host

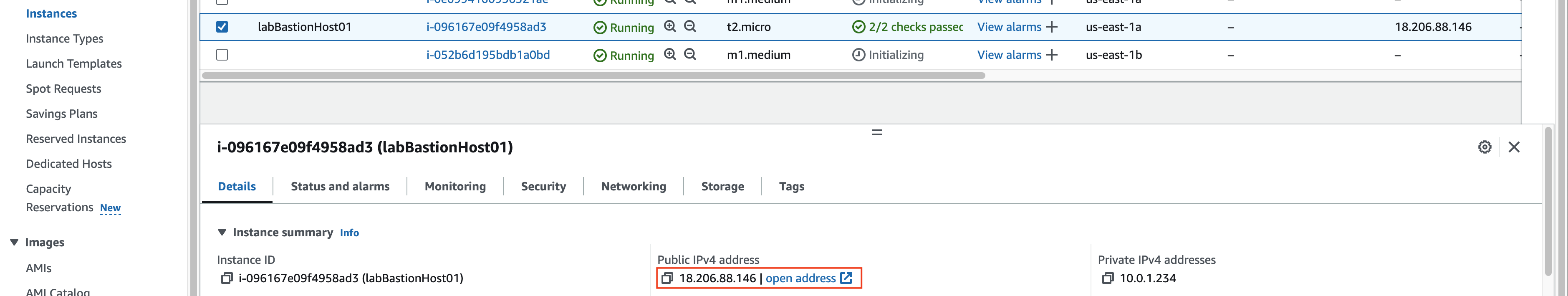

1. Go to EC2 service management console

• Copy the IP 18.206.88.146 at Public IPv4 address field.

2. Open your terminal.

     ssh ubuntu@18.206.88.146 -i ~/.ssh/labBastionHostSSHKey01.pem


• Change the 18.206.88.146 to your EC2’s Public IP address.
• Change the ~/.ssh/labBastionHostSSHKey01.pem to the path of the Key pair you downloaded when creating your EC2 instance.
• After successful login to your EC2, switch to sudo user with sudo su.
• Next, update the libraries with apt update -y && apt install -y unzip.

3. Install aws cli tool.

• Copy and run this code block.

  curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip"
  unzip awscliv2.zip
  sudo ./aws/install


• Confirm the installation with aws --version.

  root@ip-10-0-1-234:~# aws --version
  aws-cli/2.17.52 Python/3.12.6 Linux/6.8.0-1012-aws exe/x86_64.ubuntu.24


4. Add Access key on EC2 bastion host.

• Run aws configure and enter your Access key credential.

  root@ip-10-0-1-234:~# aws configure
  AWS Access Key ID [None]: AKIAQIJRSMTTPGVD45WE
  AWS Secret Access Key [None]: ipVz+Y0C9Z2132n3Ef7jFLhJc415OXQmfq3cXPof
  Default region name [None]:
  Default output format [None]:
  root@ip-10-0-1-234:~#


Next, we will create IAM role for the lab.
