Create EFS

Create EFS

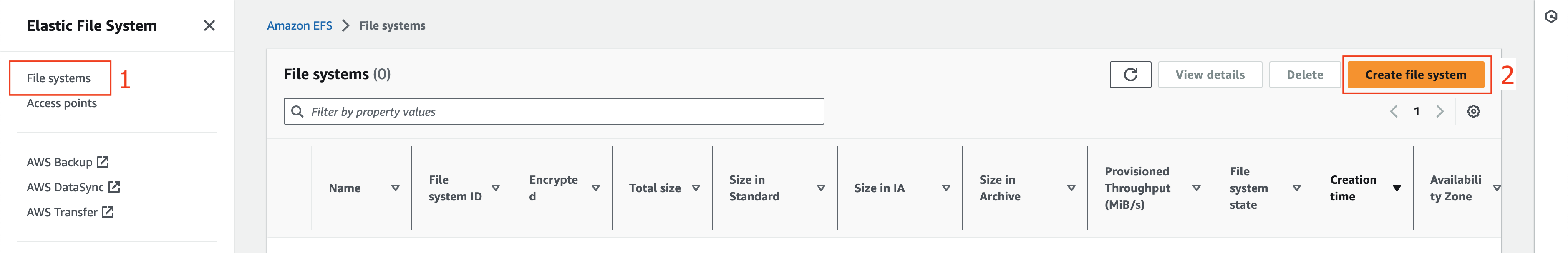

  1. Go to EFS service management console
  • Click File systems.
  • Click Create file system. EC2
  1. At the Create file system popup.
  • Fill the Name field with labEFS01 value.
  • Fill the Virtual Private Cloud (VPC) with labVCP01 value.
  • Click the Customize button. EC2

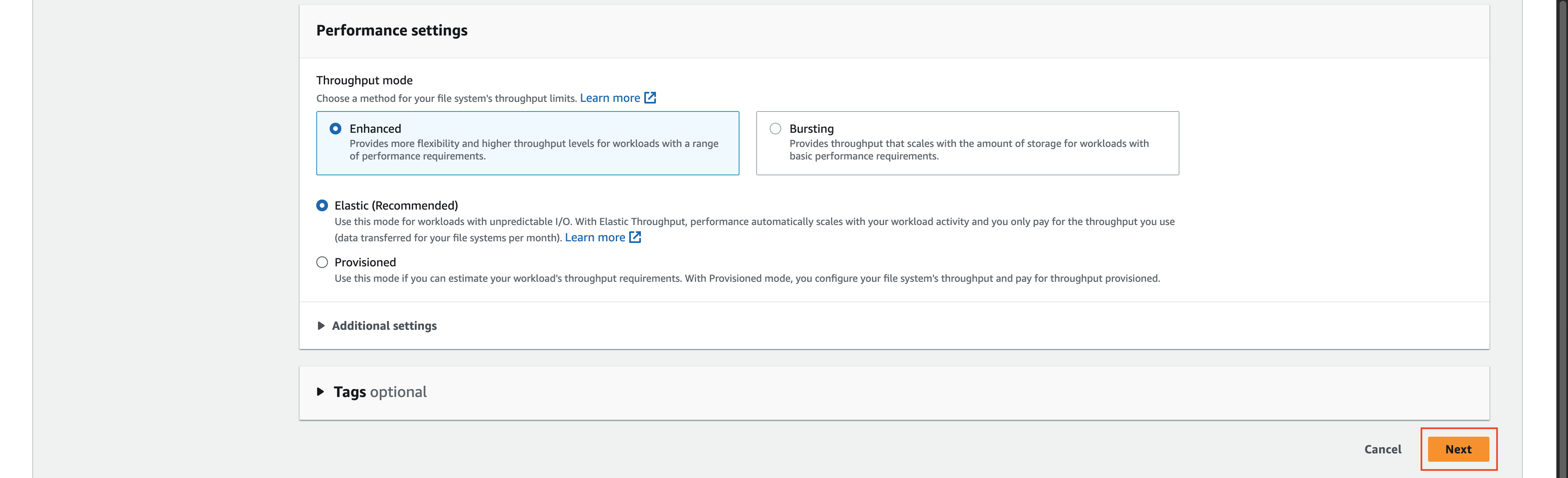

  1. At the Step 1: File system settings section.
  • Leave all fields in this step as default.
  • Click Next button. EC2

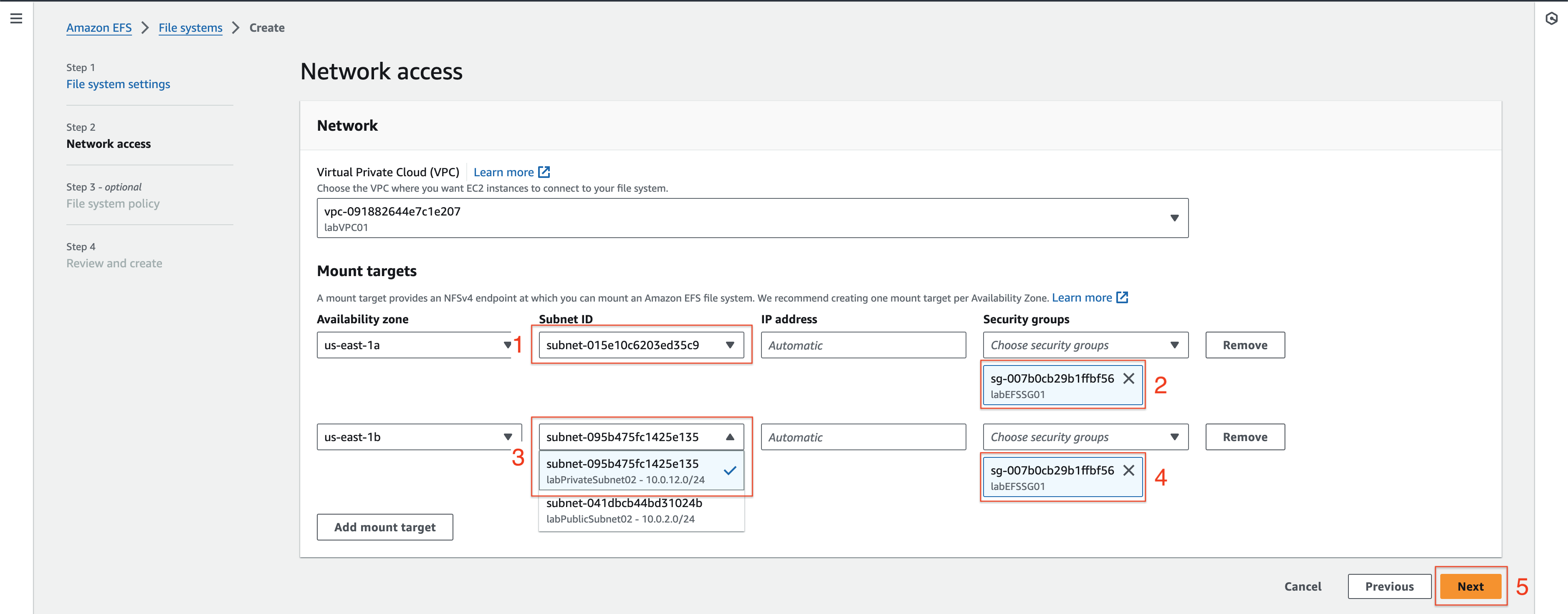

  1. At the Step 2: Network access section.
  • On us-east-1a Availability zone, choose labPrivateSubnet01 subnetID and labEFSSG01 security groups.
  • On us-east-1b Availability zone, choose labPrivateSubnet02 subnetID and labEFSSG01 security groups.
  • Click Next button. EC2
  1. Leave as default with Step 3 and click Next.

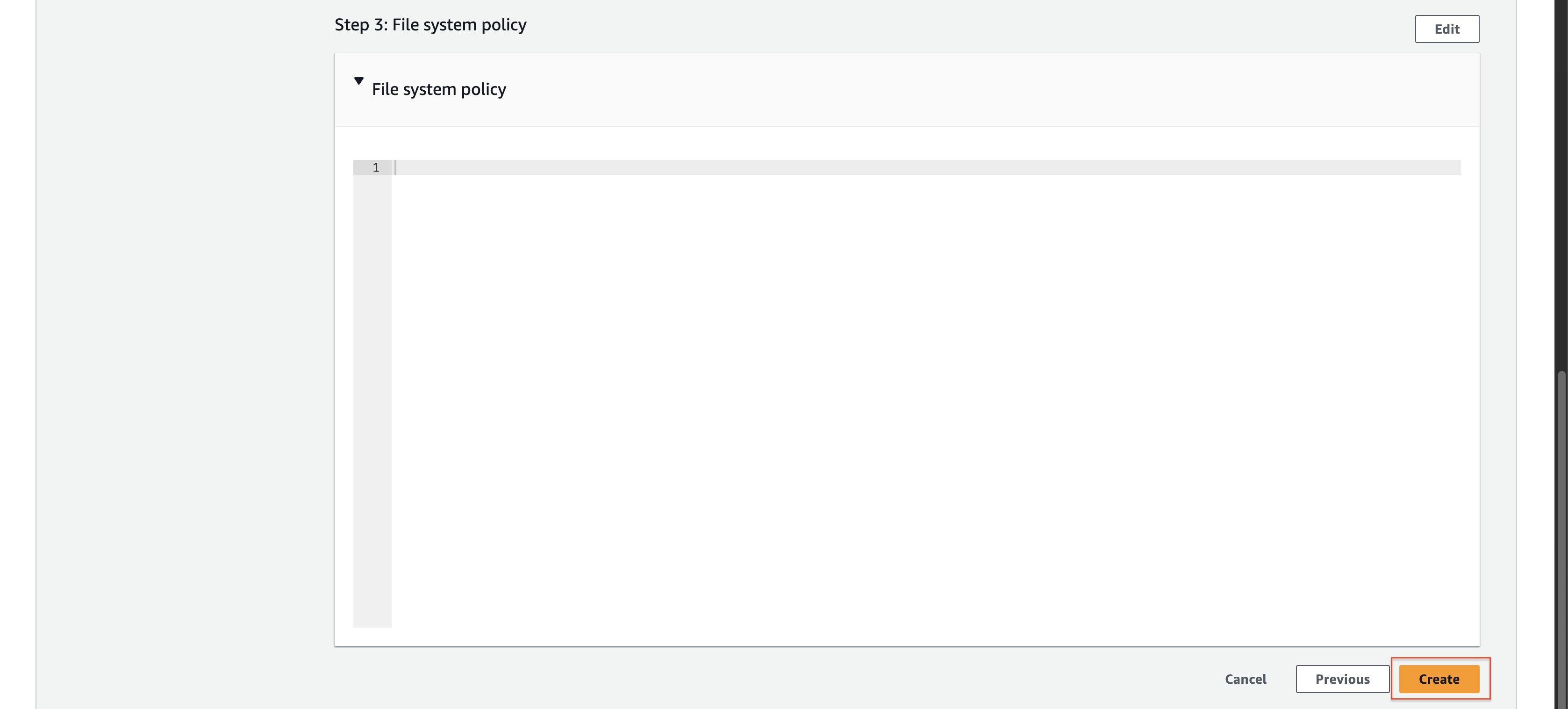

  2. Leave as default with Step 4 and click Create. EC2

Next, we will configure the EFS CSI driver.
