Configure EFS CSI driver

In this step, we will configure our EFS CSI driver.

Install helm

Helm is a package manager for Kubernetes that simplifies the process of deploying and managing applications within a Kubernetes cluster. It uses “charts,” which are pre-configured templates that define the structure, dependencies, and configuration options of an application or service.

  1. Open your terminal.
      ssh ubuntu@18.206.88.146 -i ~/.ssh/labBastionHostSSHKey01.pem
  • Change the 18.206.88.146 to your EC2’s Public IP address.
  • Change the ~/.ssh/labBastionHostSSHKey01.pem to the path of the Key pair you downloaded when creating your EC2 instance.
  • After successful login to your EC2, switch to sudo user with sudo su.
  1. Install helm
  • Run this code block
    curl https://baltocdn.com/helm/signing.asc | gpg --dearmor | sudo tee /usr/share/keyrings/helm.gpg > /dev/null
sudo apt-get install apt-transport-https --yes
echo "deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/helm.gpg] https://baltocdn.com/helm/stable/debian/ all main" | sudo tee /etc/apt/sources.list.d/helm-stable-debian.list
sudo apt-get update
sudo apt-get install helm
  • Confirm the installation with helm version.
    root@ip-10-0-1-234:~# helm version
version.BuildInfo{Version:"v3.16.1", GitCommit:"5a5449dc42be07001fd5771d56429132984ab3ab", GitTreeState:"clean", GoVersion:"go1.22.7"}
root@ip-10-0-1-234:~#

Configure EFS CSI driver

  1. Create efs-csi-controller-sa service account.
  • Save this aws-efs-csi-driver-sa.yaml file.
    • Change arn:aws:iam::017820706022:role/labEKSEFSCSIDriverRole to your labEKSEFSCSIDriverRole’s ARN value.
    # aws-efs-csi-driver-sa.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    app.kubernetes.io/name: aws-efs-csi-driver
  name: efs-csi-controller-sa
  namespace: kube-system
  annotations:
    eks.amazonaws.com/role-arn: arn:aws:iam::017820706022:role/labEKSEFSCSIDriverRole
  • Run kubectl apply -f aws-efs-csi-driver-sa.yaml.
    root@ip-10-0-1-234:~# kubectl get -n kube-system sa | grep efs-csi-controller-sa
efs-csi-controller-sa                         0         106s
  1. Install the driver using Helm

  • Add the Helm repo: helm repo add aws-efs-csi-driver https://kubernetes-sigs.github.io/aws-efs-csi-driver/.

  • Update the repo: helm repo update aws-efs-csi-driver

  • Install a release of the driver using the Helm chart.

    helm upgrade --install aws-efs-csi-driver \
  --namespace kube-system \
  --set controller.serviceAccount.create=false \
  --set controller.serviceAccount.name=efs-csi-controller-sa \
  aws-efs-csi-driver/aws-efs-csi-driver

  • Check if creation success.

    root@ip-10-0-1-234:~# helm repo add aws-efs-csi-driver https://kubernetes-sigs.github.io/aws-efs-csi-driver/
"aws-efs-csi-driver" has been added to your repositories
root@ip-10-0-1-234:~# helm repo update aws-efs-csi-driver
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "aws-efs-csi-driver" chart repository
Update Complete. ⎈Happy Helming!⎈
root@ip-10-0-1-234:~# helm upgrade --install aws-efs-csi-driver \
  --namespace kube-system \
  --set controller.serviceAccount.create=false \
  --set controller.serviceAccount.name=efs-csi-controller-sa \
  aws-efs-csi-driver/aws-efs-csi-driver
Release "aws-efs-csi-driver" does not exist. Installing it now.
NAME: aws-efs-csi-driver
LAST DEPLOYED: Fri Sep 20 13:51:50 2024
NAMESPACE: kube-system
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
To verify that aws-efs-csi-driver has started, run:

    kubectl get pod -n kube-system -l "app.kubernetes.io/name=aws-efs-csi-driver,app.kubernetes.io/instance=aws-efs-csi-driver"
root@ip-10-0-1-234:~# kubectl get pod -n kube-system -l "app.kubernetes.io/name=aws-efs-csi-driver,app.kubernetes.io/instance=aws-efs-csi-driver"
NAME                                 READY   STATUS    RESTARTS   AGE
efs-csi-controller-5864df9cf-7klcl   3/3     Running   0          16s
efs-csi-controller-5864df9cf-hslwm   3/3     Running   0          16s
efs-csi-node-nms8t                   3/3     Running   0          17s
efs-csi-node-q5tkf                   3/3     Running   0          17s
root@ip-10-0-1-234:~#

Create Dynamic Provisioning StorageClass

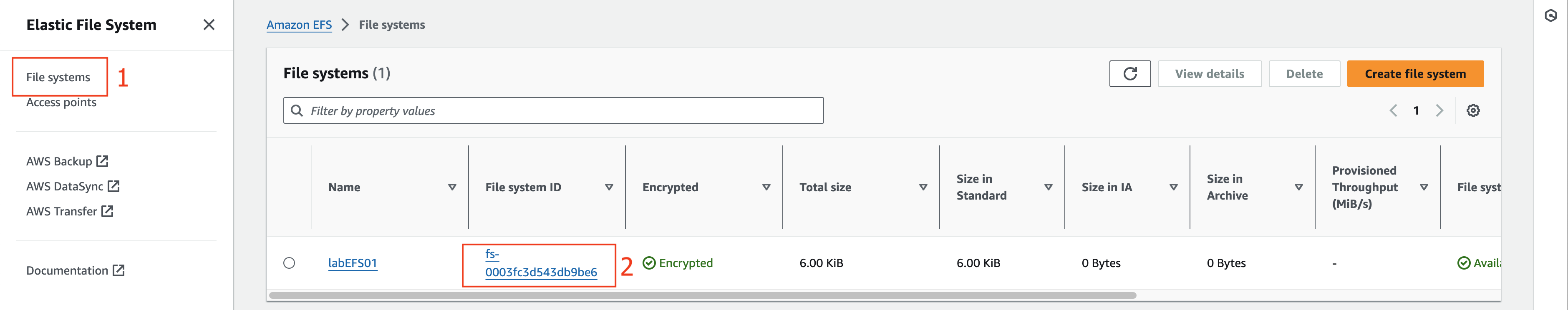

  1. Go to EFS service management console
  • Click File systems.
  • Copy fs-0003fc3d543db9be6. EC2
  1. Create StorageClass.
  • Back to your terminal, save this StorageClass manifest.
    # efs-sc.yaml
kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
  name: efs-sc
provisioner: efs.csi.aws.com
parameters:
  provisioningMode: efs-ap
  fileSystemId: fs-92107410
  directoryPerms: "700"
  gidRangeStart: "1000" # optional
  gidRangeEnd: "2000" # optional
  basePath: "/dynamic_provisioning" # optional
  subPathPattern: "${.PVC.namespace}/${.PVC.name}" # optional
  ensureUniqueDirectory: "true" # optional
  reuseAccessPoint: "false" # optional
  • Change fileSystemId: fs-92107410 to your FileSystemID from the previous step.
  • Run kubectl apply -f efs-sc.yaml
  • Check if the creation success.
    root@ip-10-0-1-234:~# kubectl apply -f efs-sc.yaml
storageclass.storage.k8s.io/efs-sc created
root@ip-10-0-1-234:~# kubectl get storageclass
NAME     PROVISIONER             RECLAIMPOLICY   VOLUMEBINDINGMODE      ALLOWVOLUMEEXPANSION   AGE
efs-sc   efs.csi.aws.com         Delete          Immediate              false                  17s
gp2      kubernetes.io/aws-ebs   Delete          WaitForFirstConsumer   false                  3d20h

Next, we will configure labNodeGroupsRole.
